2000 mesh superfine grinding mill

Date:2018-07-31 16:22

In general, superfine grinding mill is defined as the grinding mill which can make powder with at least 600 mesh fineness. Here, we would like to introduce our HGM series superfine grinding machines. There are five models in this series, and they are HGM80, HGM90, HGM100, HGM 125 and HGM1680.

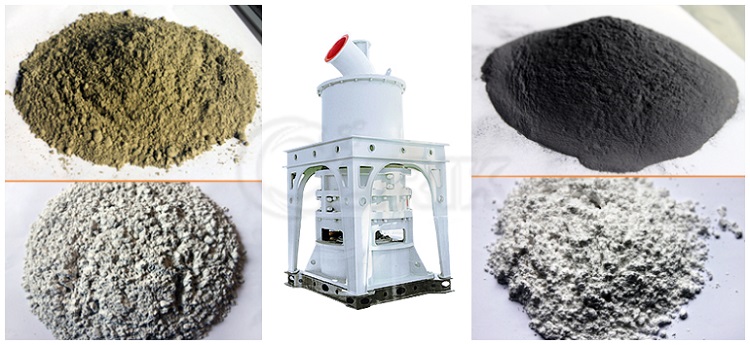

superfine grinding mill
Why are there five different models in HGM series? Well, these grinding mills has different performance in powder fineness and capacity. Let’s have a look at the parameter of these five grinding machines.
Unit: KW HGM80 HGM90 HGM100 HGM125 HGM1680
Main Unit 55-75 2*45 132 185-200 315
Classifier 18.5 18.5 30 37-4*15 5*18.5
Blower 45 55 75 2*45-2*55 2*75-2*90
Crusher 18.5 18.5 18.5 45 45
Bucket Elevator 3 3 4 4 7.5
Feeder 2.2 2.2 2.2 3 3
Discharging Valve 2*0.75 1*0.75-1*1.1 2*1.1 2*1.1 2*0.75-2*1.5
Air Compressor 11 15 22 2*15-37 55
HGM series grinding mills is widely used in many fileds becasue it can process about 100 kinds of non-metallic and non-flammable ores, such as calcite, gypsum, talc, limestone, dolomite and so on. The grinding machine in this series is also equipped with the secondary classfying system. Such auxiliary equipment can guarantee the high powder fineness.
Model HGM80 HGM90 HGM100 HGM125 HGM1680
Ring Diameter(mm) 800 900 1000 1250 1680
Ring Number(layer) 3 3 4 4 4
Roller Number(piece) 18-21 24-29 28-36 30-40 30-44
Main Shaft Speed(r.p.m) 230-240 200-220 180-200 135-155 120-130
Input Size(mm) ≦20 ≦20 ≦20 ≦20 ≦20
Finished Size(mesh) 200-2500 200-2500 200-2500 150-2000 150-1500
Capacity(t/h) 0.5-4.5 0.6-6.5 1-9 2.8-20 5-45
Overall Dimension(L*W*H,m) 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 14*9*10.25 26.3*7.5*11.9

Welcome to contact us.
