Diatomaceous earth powder mill equipment
Diatomite processing we have Diatomaceous earth powder mill equipment. Diatomite is also called diatomaceous earth, infusorial earth. Diatomite is a siliceous rock, mainly distributed in China, the United States, Denmark, France, the Soviet Union, Romania and other countries. Diatomite reserves in China is 320 million tons and prospective reserves of over 20 billion tons, mainly concentrated in the eastern and northeastern region. Diatomite is considered to be a good cost-effective powder products with extinction, has large international paint manufacturer as specified supplies, and are widely used in latex paint, interior and exterior paint, alkyd paint and poly ester paint and other coatings systems, especially suitable for the production of architectural coatings. Application of coatings, paints, balanced control coating surface gloss, increased abrasion resistance and scratch resistance of the coating, dehumidification, deodorization, but also purify the air, noise, water and insulation, permeability good features.
Diatomaceous earth powder mill equipment:
Diatomaceous earth powder mill equipment is designed by our R&D department on the basis of multiple innovation and testing. It has been proved by thousands of customers that our machine has outstanding features, stable quality, easy operation and maintenance. It is the ideal equipment for fine powder milling. Diatomaceous earth powder mill equipment granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H.
Working principle of Diatomaceous earth powder mill equipment :

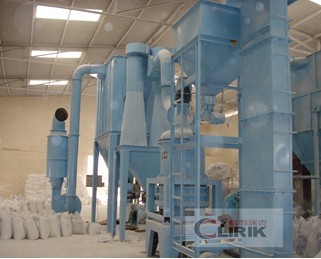

HGM series Diatomaceous earth powder mill equipment mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.
When the Diatomaceous earth powder mill equipment is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.
The high-pressure air blower constantly inhales air within the Diatomaceous earth powder mill equipment and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
Main Specification of Diatomaceous earth powder mill equipment:
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 |
| Ring Number(layer) | 3 | 3-4 | 3 | 4 | 4 |
| Roller Number (piece) | 21 | 24-32 | 27 | 34-36 | 40-44 |
| Main Shaft Speed (r.p.m.) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
| Input Size(mm) | ≤20 | ||||
| Finished Size (μm/mesh) |
5-47 （325-2500） |
||||
| Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1 -8.5 | 1.5-12 |
|
Overall Dimension (L*W*H, m) |
13.9x4x6.2 | 14.7x4.8x7.2 | 18x4.6x8.6 | 18x4.6x8.6 | 14x9x10.25 |
| Motor Power(KW) | 145-165 | 175-192 | 263 | 263 | 378-408 |
Note: Any changes of technical data shall not be prior advised.
