Pebbles [cobble stone] micro powder grinding mill
Pebbles [cobble stone] is applicable to a variety of filter. To make Pebbles [cobble stone] into powder, please choose CLIRIK Pebbles [cobble stone] micro powder grinding mill.Pebbles specifications:
(1) power plant transformer dedicated natural pebbles :5-8cm 8-12cm; (power sector inspection by)(2), pebbles Series 2-4mm,4-8,8-16mm, 16-24,24-32 mm; (filtered water dedicated); (3), the garden pavement engineering series 1-3cm, 3 -5cm,5-8,8-16,16-25,25-40; (road surfacing) (4), water treatment cushion series 2-3cm, 3-5cm, 5 - 8,8-16 ,16-32; (with water treatment plants, sewage treatment plants)(5), chemical plants dedicated series: black natural pebbles, specifications :5-8cm,8-12cm; (strong acid resistance, corrosion resistance) the use of pebbles: cobblestone is widely used in the power plant transformer, water treatment filter pad layer, public buildings, villas, courtyards, gardens, laying of the river embankment, the bottom of the lake, chemical plants, sewage plants, steel mills, waterworks and other projects, is an excellent material of choice.

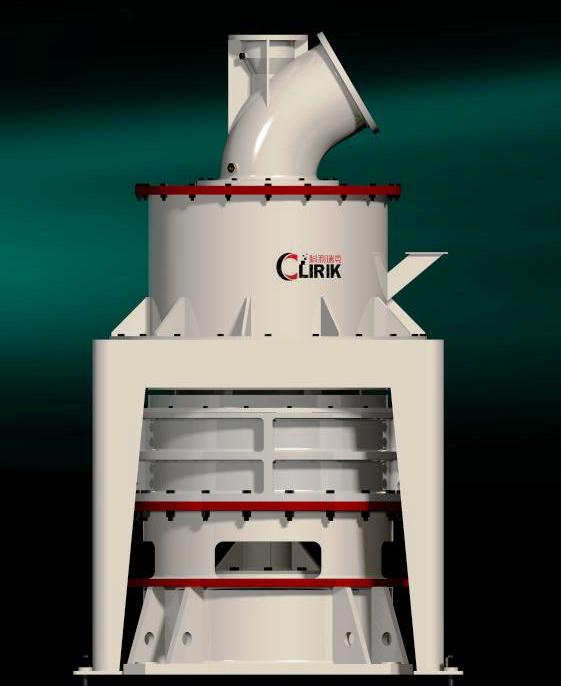

Pebbles [cobble stone] micro powder grinding mill:
Pebbles [cobble stone] micro powder grinding mill, which is designed by our engineers and technicians on the basis of multiple innovation, test and experience over two decades, has absorbed many advantages of home and abroad mill manufacturing technique. It has been proved by thousands of customers that our machine has outstanding features and stable quality. Our Pebbles [cobble stone] micro powder grinding mill can upgrade its production and the additional value which is suitable for our customer to use. It is the ideal powder mill for fine milling.
Pebbles [cobble stone] micro powder grinding mill granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H.
Working Principle of Pebbles [cobble stone] micro powder grinding mill:
Pebbles [cobble stone] micro powder grinding mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.
When the Pebbles [cobble stone] micro powder grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.
The high-pressure air blower constantly inhales air within the Pebbles [cobble stone] micro powder grinding mill and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
Features of Pebbles [cobble stone] micro powder grinding mill:
1. High efficiency
Under the same final size and power, the product capacity of Pebbles [cobble stone] micro powder grinding mill is twice than jet mill and agitation mill.
2. Longer lifetime of spare parts
The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.
3. High safety and reliability:
There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.
4. High fineness of products
The product fineness can reach D97≤5μm.
5. Environment friendly
The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard.
Technical data of Pebbles [cobble stone] micro powder grinding mill:
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 |
| Ring Number (PCS) | 3 | 3-4 | 3 | 4 | 4 |
| Roller Number(PCS) | 21 | 24-32 | 27 | 34-36 | 40-44 |
| Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
| Input Size (mm) | ≤20 | ||||
| Finished Size (um) | 5-47(325-2500) | ||||
| Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
| Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
| Motor powder (KW) | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
Note: This specification is just referencing, any changes are subject to the products.
