Feldspar powder mill equipment; Feldspar micro powder mill
There are five types of Shanghai CLIRIK HGM series Feldspar powder mill equipment; Feldspar micro powder mill, they are HGM80, HGM90, HGM100, HGM100A and HGM125. The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 12T/H.
The detailed specification and technical data of our Feldspar powder mill equipment; Feldspar micro powder mill are as below:
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 |
| Ring Number (PCS) | 3 | 3-4 | 3 | 4 | 4 |
| Roller Number(PCS) | 21 | 24-32 | 27 | 34-36 | 40-44 |
| Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
| Input Size (mm) | ≤20 | ||||
| Finished Size (um) | 5-47(325-2500) | ||||
| Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
| Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
| Motor powder (KW) | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
Note: This specification is just referencing, any changes are subject to the products.
Shanghai clirik machinery co., LTD. Feldspar powder mill equipment; Feldspar micro powder mill is the new type mining equipment for making micro powders, fine powders, which is widely applied in the industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics, and so on.
Feldspar is the floorboard family of feldspar minerals, it is a kind of common calcium, potassium and sodium aluminum silicate kind of rock forming minerals. Feldspar contains calcium, sodium, potassium aluminum silicate minerals, it has a lot of kinds, such as sodium feldspar, calcium feldspar, barium feldspar, barium ice feldspar, microcline, potash feldspar, through feldspar, etc. They all have glass luster, color variety, a colorless, white, yellow, pink, green, gray, black and so on. Feldspar's main purpose is to make ceramics and enamel, glass raw materials, abrasive abrasive, etc., also can make potash fertilizer.
Working principle of Feldspar powder mill equipment; Feldspar micro powder mill:

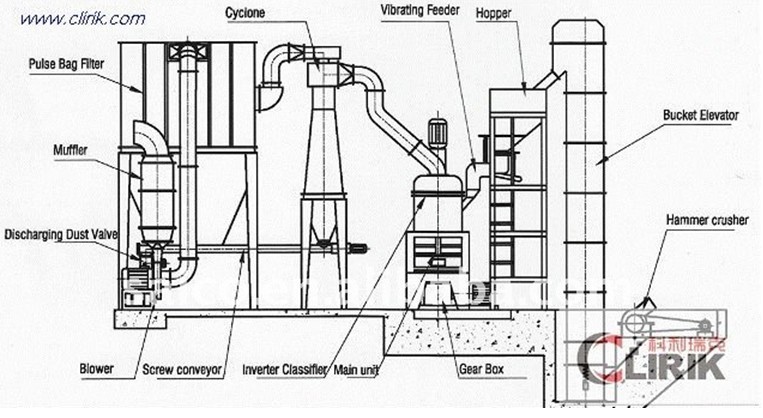

HGM series Feldspar powder mill equipment; Feldspar micro powder mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.
When the Feldspar powder mill equipment; Feldspar micro powder mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.
The high-pressure air blower constantly inhales air within the Feldspar powder mill equipment; Feldspar micro powder mill and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
