Powder Mill
White marble micro powder mill; White marble powder mill equ
Introduce of White marble micro powder mill; White marble powder mill equipment:CLIRIK White marble micro powder mill; White marble powder mill equipment, which is designed by our engineers and technicians on the basis of multiple innovation, test and experience over two decades, has absorbed many advantages of home and abroad mill manufacturing technique. It has been proved by thousands of customers that our machine has outstanding features and stable quality. CLIRIK White marble micro powder mill; White marble powder mill equipment can upgrade its production and the additional value which is suitable for our customer to use. It is the ideal equipment for fine milling.
Main Components of White marble micro powder mill; White marble powder mill equipment:
HGM series White marble micro powder mill; White marble powder mill equipment mainly consist of main unit, classifier, dust cleaner, powder collector, blower, muffler, hammer crusher (can be replaced by jaw crusher), bucket elevator, sound-proof room, storage hopper, vibrating feeder and so on.
Compared with other companies powder mill, Shanghai Clirik Machinery Co. Ltd. White marble micro powder mill; White marble powder mill equipment has the following Features and advantages :
1) High efficiency
2) Long lifecycle of White marble micro powder mill; White marble powder mill equipment spare parts.
3) High safety and reliability
4) High fineness and flexible adjustment
5) Environment-friendly
6) Advanced intelligent speed control device
Working principle of White marble micro powder mill; White marble powder mill equipment:

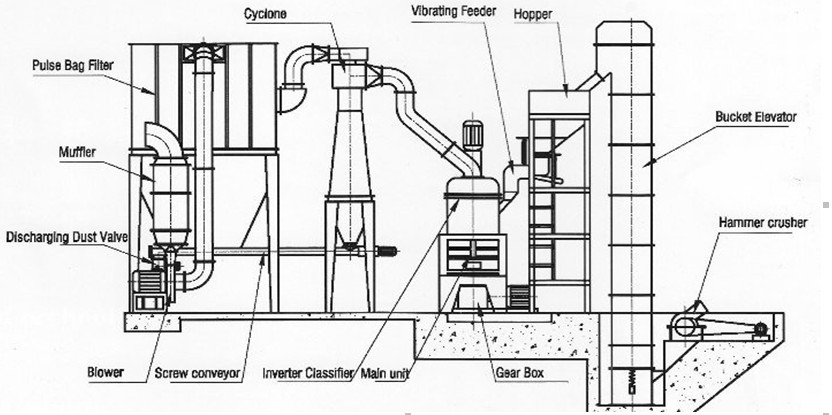

HGM series White marble micro powder mill; White marble powder mill equipment mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.
When the White marble micro powder mill; White marble powder mill equipment is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.
The high-pressure air blower constantly inhales air within the White marble micro powder mill; White marble powder mill equipment and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
