Barite micro powder mill; Barite powder mill equipment

Introduce of Barite micro powder mill; Barite powder mill equipment:

Barite micro powder mill; Barite powder mill equipment is for super-fine grinding materials with hardness less than 6 in Moh‘s scale and humidity less than 6 percent such as kaolin, limestone, basalt, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds. The granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H.



Barite and the use of Barite powder after processing by powder mill:

Barite is the most common minerals barium, its composition is barium sulfate. Barite is a kind of very important non-metallic mineral raw materials, has a wide range of industrial uses:

1. The drilling mud weighting agent. 2. Lithopone pigment. 3. All kinds of barium compounds. 4. Packing industrial barite. 5, cement industrial mineralizer. 6. Prevent ray cement, mortar and concrete. 7. Road construction: at present, the heavy road construction equipment tires have partially filling barite, in order to increase the weight, which will help fill area compaction.

Other: barite and oil mixed on the cloth base on manufacturing cloth; Barite powder used for refining kerosene; In the pharmaceutical industry in gastrointestinal contrast agent; Still can system pesticide, the leather making, the system of fireworks, etc. In addition, barite is also used for extraction metal barium, used as a television and other vacuum tube getter, binder. Barium and other metal (aluminum, magnesium, lead, calcium) made of alloy, used for bearing manufacturing.

Working principle of Barite micro powder mill; Barite powder mill equipment:

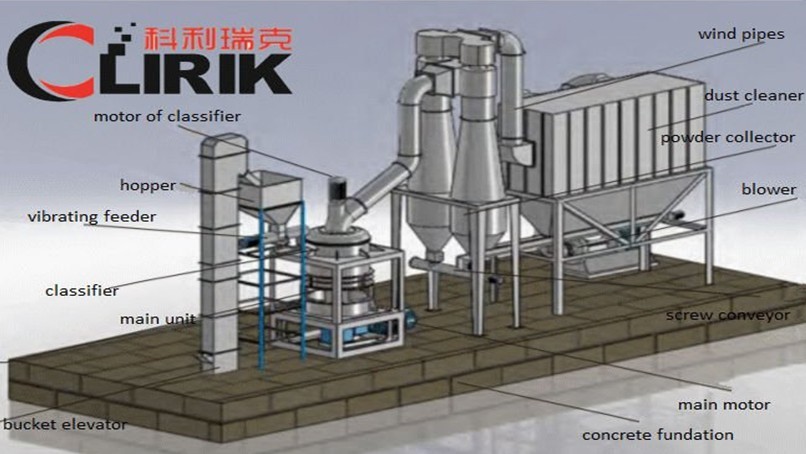

HGM series Barite micro powder mill; Barite powder mill equipment mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.

When the Barite micro powder mill; Barite powder mill equipment is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.



The high-pressure air blower constantly inhales air within the Barite micro powder mill; Barite powder mill equipment and, in turn,  the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
