Quartz powder mill,quartz micro powder grinding mill

The industrial use of quartz powder and quartz powder mill:

Quartz belong to oxide and hydroxide class, colorless transparent. Quartz according to quality can be divided into ordinary quartz sand, refining quartz sand, high purity quartz sand, fused quartz sand. Quartz sand after powder mill, micro powder grinding mill processing into powder is an important industrial mineral raw materials, which is widely used in glass, casting, ceramic and refractory materials, metallurgy, construction, chemical, plastic, rubber, abrasive industry, etc.

Quartz powder mill,quartz micro powder grinding mill,the granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H.

Production Line Configuration of Quartz powder mill,quartz micro powder grinding mill:
The whole set Quartz powder mill,quartz micro powder grinding mill consists of
1). Hammer crusher, bucket elevator, storage hopper, vibrating feeder,
2). Main unit, inverter classifier, cyclone collector, pulse deduster system,
3). High pressure positive blower, air compressors and electrical control systems.

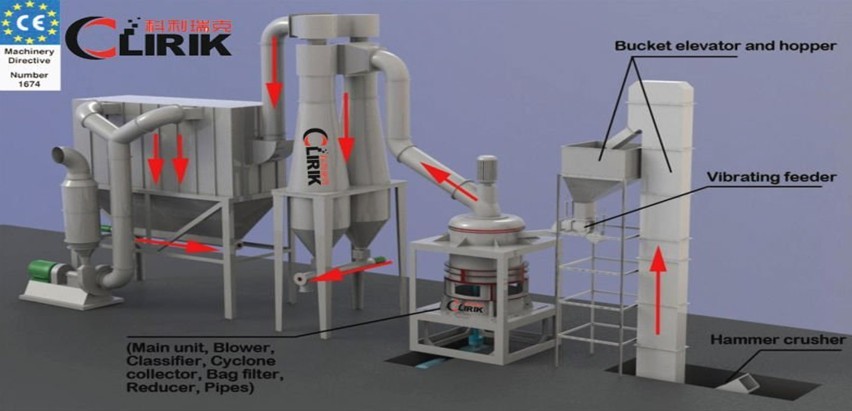

Working Principle of Quartz powder mill,quartz micro powder grinding mill:

●The crusher will crush the big materials into small ones, and then the elevator will send them to the hopper.
●The vibrating feeder will send the materials to the middle of first dial evenly.
●The motor of main equipment drives the main shaft and dial through reducer, and the dial drives numbers of rollers moving in the ring channels via pins.
●The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings.
●The high pressure centrifugal blower will inhale air from outside and bring the crushed materials to classifier.
●The rotating turbo in the powder collector will make the coarse materials return to the mill and regrounded, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it.
●The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
