2013 Clay powder mill, clay powder mill equipment

Clay after processing by Clay powder mill, clay powder mill equipment,can be used in many industrial. Clay is a kind of important mineral raw materials. The application of clay powder: 1, in the industrial used in model manufacture and art model. Artists use clay making model.2, in the drinking water processing and other chemical process as ion exchanger. 3, kaolinite is porcelain materials. 4, kaolinite still can make paper surface special smooth and absorb ink. 5, ceramsite in construction as the isolation. 6, layer as well as in soilless culture. 7, seal used in landfill site. 8, it can be used in the pigment industry and pharmaceutical industry as infilling. 9, used in the catalyst.

Powder mill, powder mill equipment:

Clay powder mill, clay powder mill equipment, the granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H depending on the final size and the grinding materials.



Working principle of Clay powder mill, clay powder mill equipment:

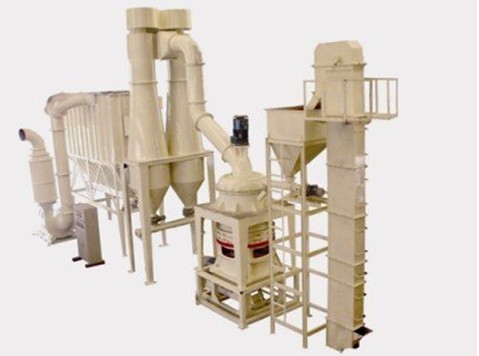

HGM series Clay powder mill, clay powder mill equipment mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.

When the Clay powder mill, clay powder mill equipment is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

The high-pressure air blower constantly inhales air within the Clay powder mill, clay powder mill equipment and, in turn,  the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
