China Soapstone powder mill on offer

Introduce of China Soapstone powder mill:
There are five types of CLIRIK Soapstone powder mill, they are HGM80, HGM90, HGM100, HGM100A and HGM125. The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 12T/H. HGM series China Soapstone powder mill mainly consist of main unit, classifier, dust cleaner, powder collector, blower, muffler, hammer crusher (can be replaced by jaw crusher), bucket elevator, sound-proof room, storage hopper, vibrating feeder and so on.

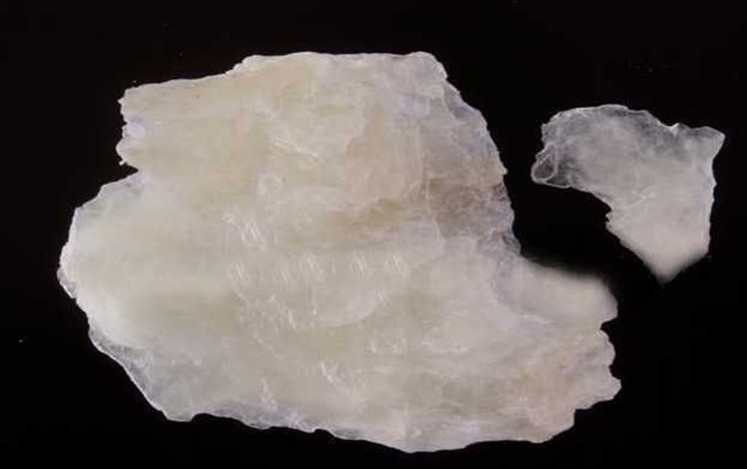

Henan Province is the country's largest production base of Soapstone processing. Soapstone is an important ceramic materials, it is used in the ceramic material and glazes, the glaze as the introduction of chemical materials, since the cooling, to improve the roughness of the role of glazed.

Working principle of China Soapstone powder mill:
HGM series China Soapstone powder mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.

When the China Soapstone powder mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

The high-pressure air blower constantly inhales air within the China Soapstone powder mill and, in turn,  the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.

Shanghai clirik machinery co., LTD.
Should you have any questions on our powder mill; China powder mill; vertical powder mill; powder mill equipment; micro powder mill; micro powder grinding mill; coarse powder mill.please do not hesitate to contact us.
Phone: 0086-21-20236178;86-18918057603
Contact person: lily wang
Email:sales@clirik.com;   lilywang@clirik.com
Online consulting: http://www.saico.net ;  http://www.grinding-equip.com;
http://www.powder-grinder.com;  http://www.powder-mill.net;
http://www.fine-mill.net;  http://www.stone-mills.com
Address: No.19 Fuqing Rd, Pudong New Area, Shanghai201201, China.
