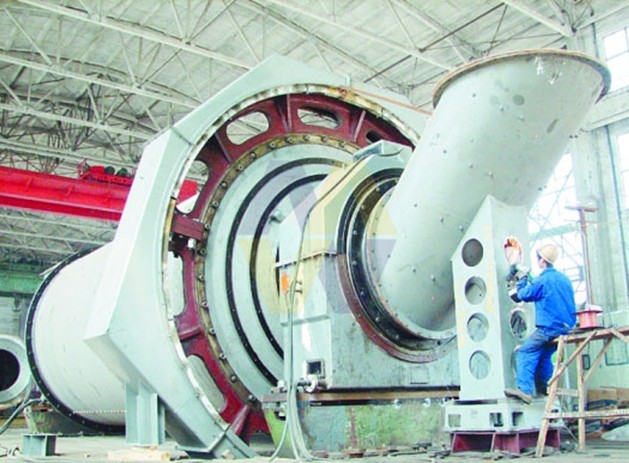

Coal Mill

The Application and Usage Range:

Coal mill is major equipment of cement plant and used for drying and grinding coal. The equipment is mainly consisted of feed device, main bearings, rotating parts, drive device, selling device, high-voltage start-up device and lubrication system. The raw material is fed into mill by feeding equipment. The hot wind enters into the mill by inlet end. As the mill cylinder rotates, the coal and hot air exchange heat in the mill. The coal is crushed and grinded in the mill. When the coal is being grinded, the powder is brought out of the mill by the hot air going through the mill.


The coal mill we make is with reasonable structure, high grinding efficiency and is the ideal equipment for coal processing.

Main Technical Parameters of Coal Mill:

Item	Model（m）	Production Capacity(T/H)	Grinder Style	Rotate Style	Power(KW)	Reducer		Weight(T)
						Model	Speed Ratio
1	Φ1.7×2.5m	3-5	Circle	Edge	95	ZD40	4.5	22
2	Φ2.2×3m	5-6	Circle	Edge	180	ZD 50	4.8	31.48
3	Φ2.4×4.4m	8-9	Circle	Edge	240	ZD 60	6.4	36.2
4	Φ2.4×4.75m	12	Circle	Edge	280	ZD 60	4.5	47.53
5	Φ2.5×3.9m	10	Circle	Edge	320	ZD 60	4.5	56.8
6	Φ2.9×4.1m	20	Circle	Edge	480	JD×560	4.9	73.79
7	Φ2.8×5.75+2.25m	16-17	Circle	Edge	500	JD×630	4.5	106
8	Φ3×6.5+3.5m	20	Circle	Edge	630	JD×800	5	118.3
9	Φ3.5×6m	50	Circle	Edge	1000	JD×630	6.7	139
10	Φ3.8×7.2m	85	Circle	Edge	1400	JD×710	4.58	227
11	Φ3.8×7.5m	90	Circle	Edge	1600	JD×900	5.6	233
