Calcinatioan siderite/iron earth micro powder grinding machi

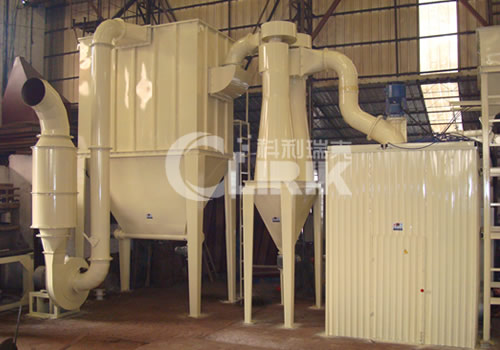

Calcination siderite/iron earth micro powder grinding machine, is specializing in producing super-fine grinding materials with hardness less than 6 in Moh‘s scale and humidity less than 6 percent such as kaolin, limestone, basalt, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds. The granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H depending on the final size and the grinding materials.
Working Principle of Calcination siderite/iron earth micro powder grinding machine?
1) After crushed by hammer crusher, the large materials become smaller pieces and are sent to the micro powder grinding mill.
2) When the micro powder grinding mill is at work, the granulated materials are crushed and grinded by the rollers into particles below 47micron.
3) The high-pressure air blower constantly inhales air within the micro powder grinding mill.
4) Along with the high speed airflow, micronized materials are brought to the classifier.
5) The qualified particles are screened and driven into the cyclone powder collector, finally exit from the discharging valve at the bottom;
6) A small proportion of the fine powders, with airflow, moving to the dust cleaner. Filtered clean air will be emitted from the air outlet of muffler in the end.
Features and advantages of Calcination siderite/iron earth micro powder grinding machine :
● High Efficiency
Under the same finished final size and the same motor power, the capacity of Fine roller mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
● Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
● High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
● High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
●Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
●Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.
Technical parameter of Calcination siderite/iron earth micro powder grinding machine
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1300 | |
| Ring Number(PCS) | 3 | 3～4 | 3 | 4 | 4 |
| Roller Number(PCS) | 21 | 24～32 | 27 | 34～36 | 40～44 |
| Main Shaft Speed(r.p.m.) | 230～240 | 200～220 | 180～200 | 135～155 | |
| Input Size(mm) | ≤20 | ||||
| Finished Size/um(mesh) | 5-47(325~2500) | ||||
| Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
| Outlet Size (L*W*H, m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 14*9*10.25 | |
| Motor Power(KW) | 145-165 | 185-204 | 263 | 263-290 |
380-430 |
