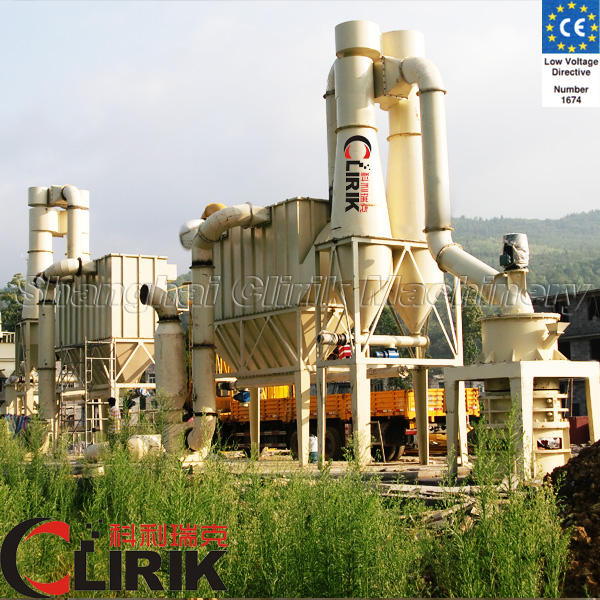

Three-ring and medium-speed micro-powder mill
The purpose of the Three-ring and medium-speed micro-powder mill is for super-fine grinding materials with hardness less than 6 in Moh’s scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble,talcum, barite, gypsum, dolomite, bentonite mud,mica, pyrophyllite, sepiolite, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment and so on. The granularity of the end products is 325-2500 meshes (0.044-0.0055mm).The main bearing and each dial are driven by electromotor of main equipment through reducer, and numbers of rings and rolls which are rolling in the ring channels are driven by dial through plunger. After being crushed by hammer crusher, the big materials become small ones and they are sent to the storage bin by elevator. The electromagnetic vibrating feeder sends them to the middle of first dial evenly; the materials will be driven to the edge of dial by centrifugal force, and fall into the ring channels and are pressed, crushed and ground by the grinding rings and rolls. Then the materials fall into the second and third ring and crushed and ground. The high pressure centrifugal blower inhales air from the outside and blow the materials which are ground in the third ring to powder Separator. The rotating turbo in the powder Separator makes the coarse materials return to the mill and reground, while the fineness mixes with the air and be drawn to the cyclone and be discharged from the discharging valve which is in the bottom of it. The air which mixed with very little fineness are purified by impulse dust catcher and discharged by blower and muffler.
Features of Three-ring and medium-speed micro-powder mill:
1. High efficiency
Under the same final size and power, the product capacity of Basalt grinder mill, grinding mill is twice than jet mill and agitation mill.
2. Longer lifetime of spare parts
The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.
3. High safety and reliability:
There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.
4. High fineness of products
The product fineness can reach D97≤5μm.
5. Environment friendly
The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard.
Model and technical data of Three-ring and medium-speed micro-powder mill:
Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
Ring Diameter(mm) | 800 | 900 | 1000 | 1000 | 1250 |
Ring Number/pcs | 3 | 3-4 | 3-4 | 4 | 4 |
Roller Number/pcs | 21 | 24-32 | 27-36 | 27-36 | 40-44 |
Main Shaft Speed/r. p. min | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
Input Size/mm | ≦15 | ||||
Finished Size/um | 5-47(325-3000) | ||||
Capacity t/h | 0.4-4.5 | 0.4-5.5 | 0.4-6.5 | 0.4-7.5 | 0.7-10 |
Outlet Size L*W*H/m | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10 |
