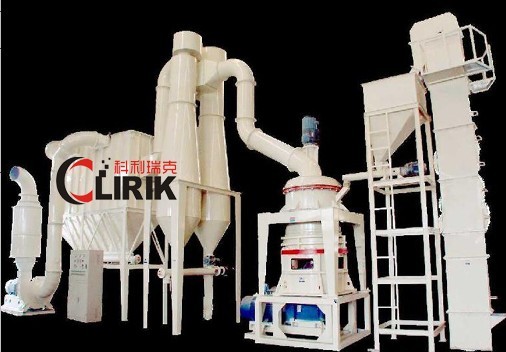

Stone powder mill machine
Specifications of stone powder mill machine：
Easy maintenance and operation
High efficiency, large grinding ratio
low investment—micro powder mill
long service life
Features of stone powder mill machine in Shanghai clirik Machinery Co., Ltd.:
1. High-efficiency and low consumption
With the same end-products fineness and motor power, its output is over 1 time of that of Jet Mill, Mix Mill, and Ball Mill.
2. Easy-damaged parts with longer working life
The grinding roll and ring are made of special materials. Generally, their work life is more than one year, but, which could come up to over 3 years, when it processes calcium carbonate and Calcite.
3. Security and Reliablity
Because there are no rolling bearing and bolts in the grinding chamber, we can not see the problems of bearings and sealings easily damaged and machine destroyed due to the bolts looseness.
4. Cleansing and Environment Protection
Adoption of Pulse dust collector and muffler reduces the industrial dust pollution and noise, which reaches the National Standard.
Technical data of HGM series stone powder mill machine:
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 |
| Ring Number (PCS) | 3 | 3-4 | 3 | 4 | 4 |
| Roller Number(PCS) | 21 | 24-32 | 27 | 34-36 | 40-44 |
| Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
| Input Size (mm) | ≤20 | ||||
| Finished Size (um) | 5-47(325-2500) | ||||
| Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
| Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
| Motor powder (KW) | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
Note: This specification is just referencing, any changes are subject to the products.
