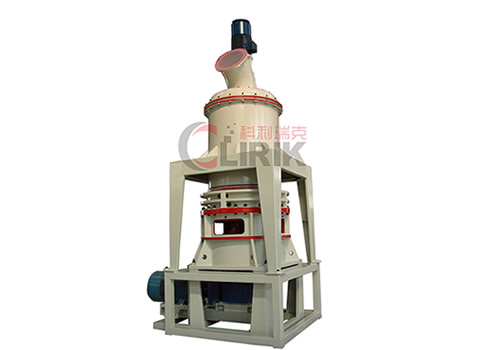

Titanium dioxide powder mill

Powder mill (micro powder grinding mill) is widely used at mining , building , construction material, metallurgy industry,for grinding the titanium dioxide, barite, limestone, slags, which below scale 9.3 of moth and below 6% shadness. Such as Mining grinder powder mill, building grinder powder mill, metallurgy grinder powder mill, etc.

There are five types of Shanghai CLIRIK titanium dioxide powder mill, they are HGM80, HGM90, HGM100, HGM100A and HGM125. The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 12T/H.

Highlights of titanium dioxide powder mill:
(1) Low investment cost. With the same products' fineness and generator power, it has low investment cost, short return period and twice more output compared with the airflow mill, stirring mill or ball mill.
(2) High powder output. With the same fineness and power consumption, its powder output is more than the airflow mill or stirring mill by 45%.
(3) Low wear and long service time of wear parts. All the wear parts are made of national anti-friction material. Their service life is longer than that of the wear parts of ordinary mill equipment. Generally, they can be used for more than one year.
(4) High security and reliability. The operation which is inside of the grinding chamber is safe and reliable. Compared with an ordinary mill, there is not rolling axletree or screws, so there is no problem of wear of the axletree and other sealed parts, and it avoids the problem that the machine is damaged due to loosen screws.
(5) High fineness of finished product. The final fineness can reach d97≤5μm through one-time processing.
(6) Environmental protection. It adopts an efficiency pulse dust collector, so there is no dust pollution in the complete operation process. In addition, it is equipped with a muffler and sound proofing room so that the pollution and noise can be reduced in accordance with the environment-protection standard, and surrounding environment is protected.

Technical data of titanium dioxide powder mill:


Model	HGM80	HGM90	HGM100	HGM100A	HGM125
Ring Diameter(mm)	800	930	1035	1035	1300
Ring Number (PCS)	3	3-4	3	4	4
Roller Number(PCS)	21	24-32	27	34-36	40-44
Main Shaft Speed (r. p. min)	230-240	200-220	180-200	180-200	135-155
Input Size (mm)	≤20
Finished Size (um)	5-47(325-2500)
Capacity (t/h)	0.5-4.5	0.6-6.5	0.7-7	1-8.5	1.5-12
Outlet Size L*W*H (m)	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	18*4.6*8.6	14*9*10.25
Motor powder (KW)	145-165	185-204	263	263-290	380-430


Note: This specification is just referencing, any changes are subject to the products.
