The three types of coarse powder mill
Date:2012-11-26 02:58:02

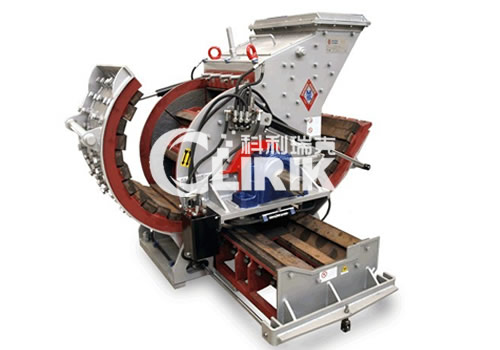

There are three types of Shanghai clirik machinery co., LTD. coarse powder mill, they are PC4008-75, PC40012-90, and PC40015-132. coarse powder mill is engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.
Shanghai clirik machinery co., LTD. coarse powder mill Main Specification for your to reference:
| 型号 Type | PC4008-75 | PC4012-90 | PC4015-132 |
| 转子直径 /mm Rotor Diameter | 750 | 900 | 1150 |
|
转子宽度/ mm Rotor Width |
800 | 1200 | 1500 |
|
转速 r/min Rotor Speed |
800-1000 | 800-1000 | 550-800 |
|
最大给料粒度/mm Max Feeding Size |
<70 | <90 | <100 |
|
出料粒度/mm Finished Particle Size |
≤3 | ≤3 | ≤3 |
| 处理能力 t/h Capacity | 35-50 | 50-70 | 70-100 |
| 功率/Kw Power | 55-75 | 75-90 | 110-132 |
| 板锤数量 /个 Hammer Number | 18 | 16 | 32 |
|
外形L*W*H/mm Layout Size |
2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |
